To turn red palm oil into edible oil, we need red palm oil refining machinery. Using red palm oil refining machinery, we not only can make the color of red palm oil lighter, but remove harmful impurities and useless substances in red palm oil, so as to improve the storage stability and smell. According to processing capacity and budget, Henan Glory Oils company can provide 3 types of red palm oil refining machinery.

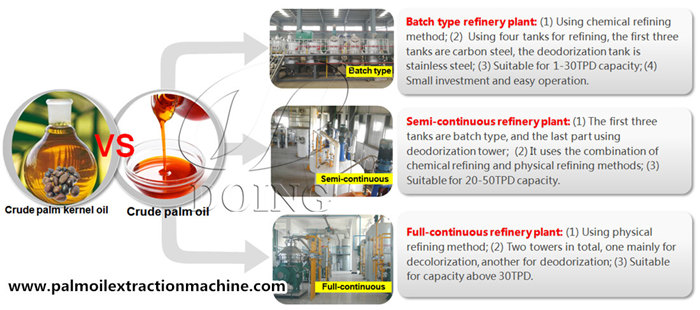

Three types of red palm oil refining machinery models
Batch red palm oil refining machinery is suitable for the processing capacity of less than 20TPD red palm oil. Its advantage is that the operation of the machinery is simple and flexible, the investment is small, and it is suitable for frequent replacement of various edible oils. Operated by electric heating and thermal oil heating.

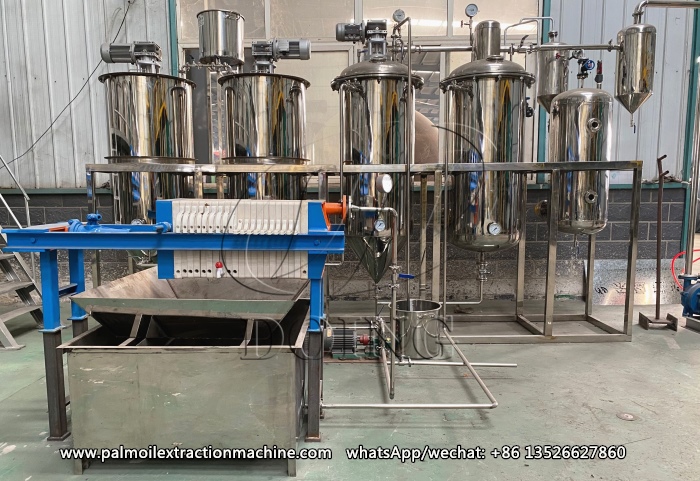

Batch red palm oil refining machinery
Semi-continuous red palm oil refining machinery is suitable for the processing capacity of 5-30TPD red palm oil. Its advantages are high efficiency, energy saving and environmental protection, high additional output value and relatively low cost.

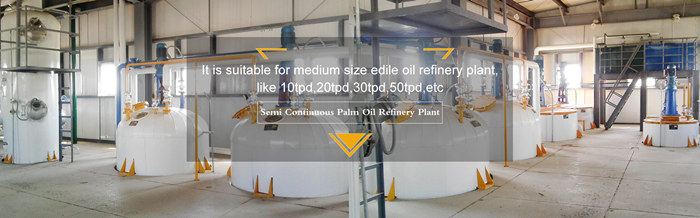

Semi-continuous red palm oil refining machinery
Full continuous red palm oil refining machinery is suitable for the processing capacity of more than 30TPD red palm oil. All units of continuous refining machinery are continuous production. This refining process has advantage of: less consumption, less oil lost and more steady quality of refining red palm oil.

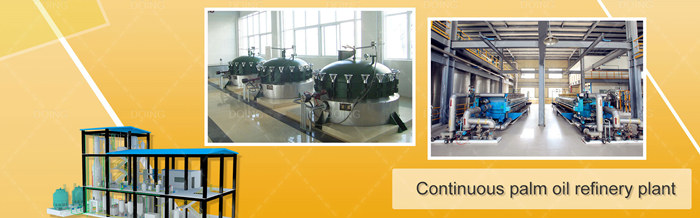

Full continuous red palm oil refining machinery

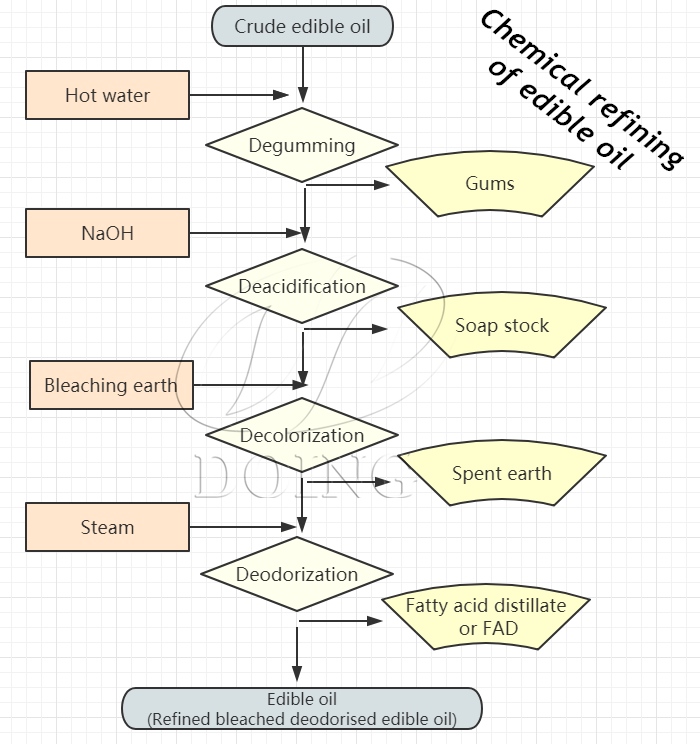

The above three kinds of red palm oil refining machinery has different processing capacities and cost, but they has same palm oil refining process, including degumming, deacidification, decolorization and deodorization. Let's take a small batch red palm oil refining machinery chemical process as an example to describe the process of red palm oil refining.
Add food-grade phosphoric acid with a concentration of 85% or 75% into red palm oil, and the amount of phosphoric acid added is 0.05%-0.2% of the oil weight.
Add a certain concentration and a certain amount of NaOH into red palm oil to carry out acid-base neutralization reaction, so as to achieve the purpose of removing free fatty acids in oil.
Add 1-3% of decolorizing agent into red palm oil which accounts for the weight of the oil, carry out physical adsorption, and then use filtering machinery to separate the red palm oil from the decolorizing agent, so as to achieve the purpose of decolorizing.
Under a high temperature of 220-260°C and a certain vacuum condition, a certain amount of superheated steam is introduced to strip the red palm oil, and the purpose of deodorization is achieved according to the difference in the volatilization point of the oil and volatile small molecular substances.
Small batch red palm oil refining machinery chemical process
If the processing capacity of red palm oil is large, semi-continuous red palm oil refining machinery and full continuous red palm oil refining machinery are recommended for physical refining. These two types of red palm oil refining machinery have low oil loss and low production consumption. Henan Glory Oils company that has been in the industry for more than 10 years, we have lots of experience. If you want to know more details about edible oil refining, please feel free to contact us.
